Incoloy 800 800H Pipe High Strength Fe-Ni-Cr Alloy Tube With Excellent Resistance ASTM

Name: Incoloy 800 800H Pipe High Strength FeNiCr Alloy Tube With Excellent Resistance ASTM
Brand: HUONA
Price: 1 USD

Brand Name : HUONA

Model Number : Incoloy 800H

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1pcs

Price : Negotiate

Payment Terms : T/T

Supply Ability : 2000Tons/ Year

Delivery Time : Normally around a week

Packaging Details : Carton, Wooden Case

Product name : Incoloy 800 800H Pipe/Tube

Product grade : Incoloy 800 800H

Product shape : Tube/pipe

Material : Nicr Iron

Alloy : Nicr Iron alloy

Sample : Support

MOQ : 1pcs

Packaging : Carton/ Wooden

Contact Now

Product Description

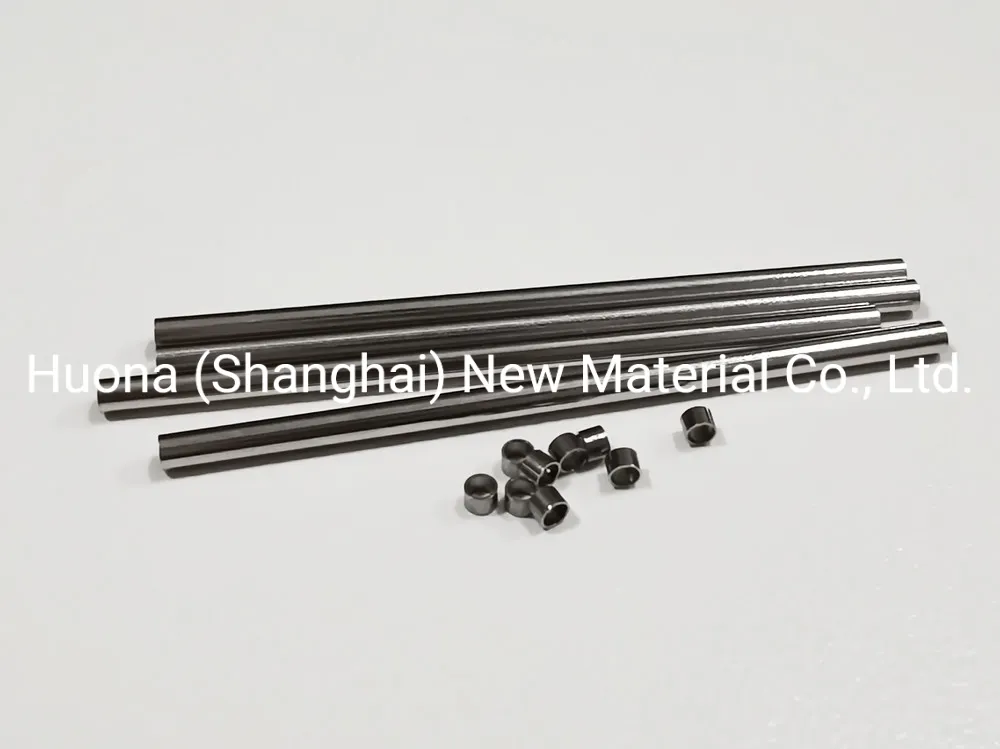

Nickel Alloy Incoloy 800 800H Pipe and Tube

Attribute	Details	Attribute	Details
Model NO.	Incoloy 800/800H	Delivery Time	7-15 days
Name	Inconel 800/800H Pipe*	Surface	Bright
Criterion	ASTM	Diameter	Customized
Custom Service	Support	Transport Package	Wooden Case
Specification	Customized	Trademark	HUONA
Origin	China	HS Code	7226999090
Production Capacity	2000 Tons/Year

General Description
Incoloy 800 /800H is a nickel-iron-chromium alloy with good strength and excellent resistance to oxidation and carburization in
high-temperature atmospheres.
A high chromium content gives Incoloy 800 good resistance to oxidation. It also resists many aqueous media and is relatively
free from stress-corrosion cracking. Incoloy 800 has excellent resistance to at concentrations up to approximately 70% and
at temperatures up to the boiling point. It also has good resistance to organic acids, such as formic, acetic, and propionic.
It resists a variety of oxidizing and nonoxidizing salts, but not halide salts.
Typical applications are heat treating equipment, petrochemical pyrolysis tubing and piping systems, sheathing for electrical
heating elements, food processing equipment.
Chemical Composition

Grade	Ni%	Cr%	Fe%	C%	Mn%	S%	Si%	Cu%	Al%	Ti%
Incoloy 800	30.0-35.0	19.0-23.0	Min 39.5	Max 0.10	Max 1.50	Max 0.015	Max 1.0	Max 0.75	0.15-0.60	0.15-0.60

Grade	Ni%	Cr%	Fe%	C%	Mn%	Si%	Cu%	S%	AL%	Ti%	Al+Ti%
Incoloy 800H	30.5-35.0	19.0-23.0	Bal.	0.05-0.10	Max 1.5	Max 1.0	Max 0.75	Max 0.015	0.15-0.60	0.15-0.60	0.30-1.20
Incoloy 800HT	30.0-35.0	19.0-23.0	Bal.	0.06-0.10	Max 1.5	Max 1.0	Max 0.75	Max 0.015	0.25-0.60	0.25-0.60	0.85-1.20

Specifications

Grade	UNS	Werkstoff Nr.
Incoloy 800	N08800	1.4876

Grade	UNS	Werkstoff Nr.
Incoloy 800H	N08810	1.4958
Incoloy 800HT	N08811	1.4959

Physical Properties

Grade	Density	Melting Point
Incoloy 800	8.0 g/cm3	1350°C-1400 °C

Grade	Density	Melting Point
Incoloy 800H/800HT	8.0 g/cm3	1370°C-1400 °C

Mechanical Properties

Grade	Tensile Strength	Yield Strength	Elongation
Incoloy 800	520 N/mm²	205 N/mm²	30%

Alloy	Tensile Strength	Yield Strength	Elongation
Incoloy 800H/800HT	450 N/mm²	170 N/mm²	35%

Welding of Incoloy 800
Any traditional welding procedures can be used to weld Incoloy 800 to similar alloys or other metals, such as gas tungsten

arc welding(GTAW),plasma arc welding (PAW), metal inertia gas welding (MIG) and so on. Before welding, remove scale, grease,
mark and imprint.
Recommend filler wire regarding welding Incoloy 800: ERNiCrMo-3

Nickel Alloy/Super Alloy	UNS	GB/T 14992		GB/T 15007		DIN	JIS
Nickel200/Ni200	N02200					2.4060
Nickel201/Ni201	N02201					2.4061
Nickel270/Ni270	N02270
Monel400	N04400					2.4360
Monelk500	N05500					2.4375
Inconel600/Alloy600	N06600			NS3102	NS312	2.4816	NCF600
Inconel601/Alloy601	N06601			NS3103	NS313	2.4851
Inconel625/Alloy625	N06625			NS3306	NS336	2.4856	NCF625
Inconel690/Alloy690	N06690			NS3105	NS315	2.4642
Inconel718/Alloy718	N07718	GH4169	GH169			2.4668
Inconel725/Alloy725	N07725
Inconel738LC/Alloy738		K438	K38
Inconel X-750/AlloyX-750	N07750	GH4145	GH145			2.4669	NCF750B
Incoloy A286/Alloy286	S66286	GH2132	GH132			1.4980	SUH660
Incoloy800/Alloy800	N08800			NS1101	NS111	1.4876	NCF800
Incoloy800H	N08810			NS1102	NS112	1.4876
Incoloy800HT	N08811					1.4876
Incoloy825/Alloy825	N08825			NS1402	NS142	2.4858	NCF825
Incoloy925/Alloy925	N09925
Incoloy926/Alloy926	N08926					1.4529
Hastelloy B	N10001			NS3201	NS321
Hastelloy B-2	N10665			NS3202	NS322	2.4617
Hastelloy C-4	N06455			NS3305	NS335	2.4610
Hastelloy C-22	N06022			NS3308	-	2.4602
Hastelloy C-276	N10276			NS3304	NS334	2.4819
Hastelloy C-2000	N06200			NS3405		2.4675
Hastelloy X/Alloy X	N06002	GH3536	GH536			2.4665
Alloy 20/Alloy 20cb/Carpenter cb3	N08020			NS1403	NS143	2.4660
		GH4049	GH49			2.4636
		GH4033	GH33
		GH4043	GH43
		GH3030	GH30			2.4983
		GH1131	GH131
	F15	4J29				1.3912	EMAS-1001
		4J33
Invar36	K93600	4J36				1.3912
		3J21
		3J58
904L	N08904					1.4539
AL6XN	N08367
Alloy59	N06059					2.4605
Nictronic50	S20910
Nictronic60
